YOSHOKA BMX 20″ Race Frames

Mini Frame

$700.00

Brand:

Description

YOSHOKA BMX 20″ Race Frames

Product details:

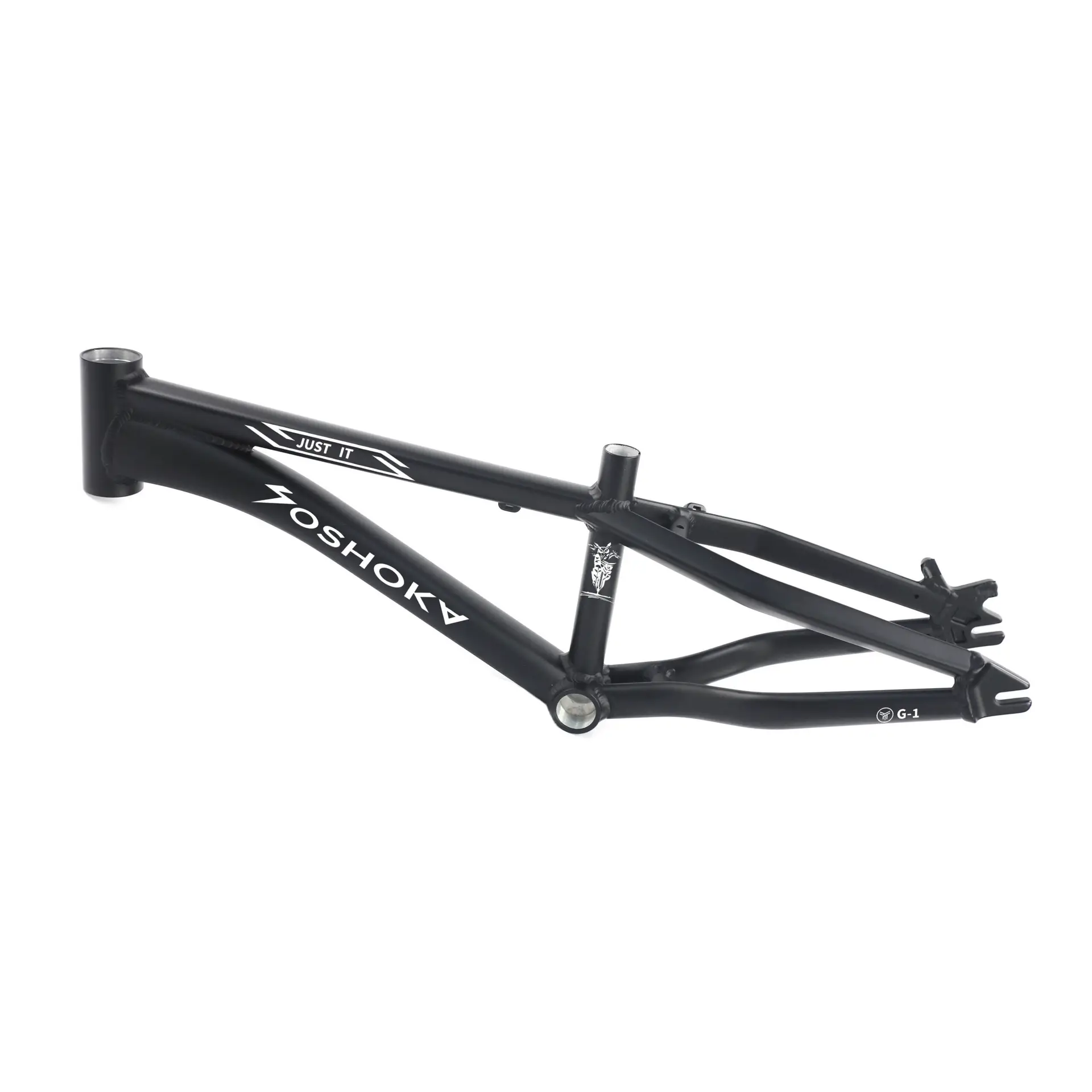

The Yoshoka BMX Race Frames is made of aluminum alloy 6061-T6 with a top tube from 17.5″ to 23″ and designed for the smallest to the tallest of riders. It also features a CNC machined standard headtube, unique square top tube shape to maximize strength and stiffness, larger and bent-shape of downtube to ensure the durability and better-looking, Euro BB shell, with a open rear-end dropout for most common-use for most of riders. The special dropout with the slot to make sure enough spaces for the adjustment. The typical  10mm (3/8″) axle slots fits to 20″ wheels.



Features:

Frame: Aluminum 6061 – T6 CNC machined head tube

Seat Tube:
22.2mm Seat tube (requires 25.4mm seat clamp)
Mini, Junior, Expert
27.2mm Seat tube (requires 31.8mm seat clamp)
Pro & up

BB: Euro BSA 68mm

TT length: 17.5″ through to 23″
17.5, 18.5, 19.5, 20.5, 21, 21.5, 21.75, 22, 22.5, 22.75, 23

Forks:
20″ straight fork   (1″ steering tube) – Mini, Junior
20″ straight fork   (1 1/8″ steering tube) – Expert
20″ taper fork        (44-56mm steering tube) – Pro & Up

Fits to:
Mini, Junior, Expert – 20″ Wheelset
(20″ 451 rims with 20x 1 1/8” or 20x 1 3/8” Tyres)
Pro & Up – 20″ Wheelset
(20″  406 rims with 20x 1.4, 1.5, 1.75, 1.90″ Tyres)

Fits to: 36-45T Chainring

Brakes: Disc brake Only / Both Disc & V brake

Colours:
Mini – 17.5 TT – Orange / Hot Pink / Martin Green / Black

Pro XL – 21 TT – Orange / Hot Pink / Martin Green / Black

Bike Scale

YOSHOKA BMX RACING SIZES REFERENCE

Model Matching Tires TT Length CS Min Head Angle Headset Seat Angle Seat Post Seat Clamp BBH BB TYPE Brake Type
Mini 20″ x 1 1/8″ 17.5 311mm 72.5° 1″ 69° 22.2mm 25.4mm 276.3mm EURO D/BOTH D&V
Junior 20″ x 1 1/8″ 18.5 311mm 73° 1″ 70° 22.2mm 25.4mm 276.3mm EURO D/BOTH D&V
Expert 20″ x 1 3/8″ 19.5 336mm 73° 1 1/8″ 70° 22.2mm 25.4mm 276.3mm EURO D/BOTH D&V
Pro 20″x 1.5/1.75/1.9″ 20.5″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
Pro XL 20″x 1.5/1.75/1.9″ 21″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
Pro
XL+		 20″x 1.5/1.75/1.9″ 21.5″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
Pro
XXL		 20″x 1.5/1.75/1.9″ 21.75″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
Pro XXL+ 20″ x 1.5/1.75/1.9″ 22″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
Pro XXXL 20″ x 1.5/1.75/1.9″ 22.5″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
Pro XXXL+ 20″ x 1.5/1.75/1.9″ 22.75″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
Pro XXXXL 20″ x 1.5/1.75/1.9″ 23″ 381mm 73° 44 – 56mm 70° 27.2mm 31.8mm 292.1mm EURO D/BOTH D&V
