Pantha Rear Wheel Alingment fix.

Some pics you can click on for a larger image.....

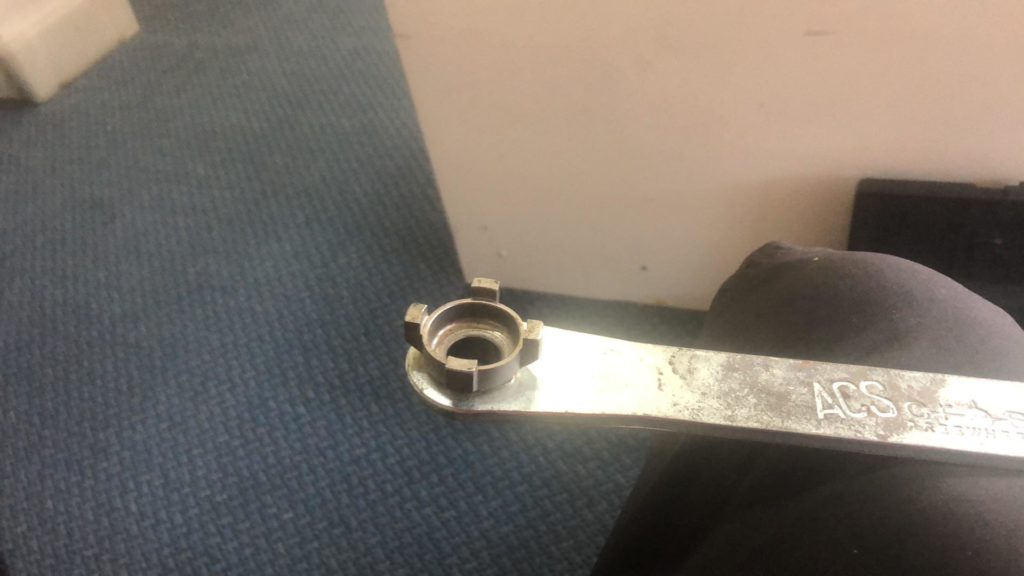

With a ACS freewheel spanner.

Remove the back sprocket.

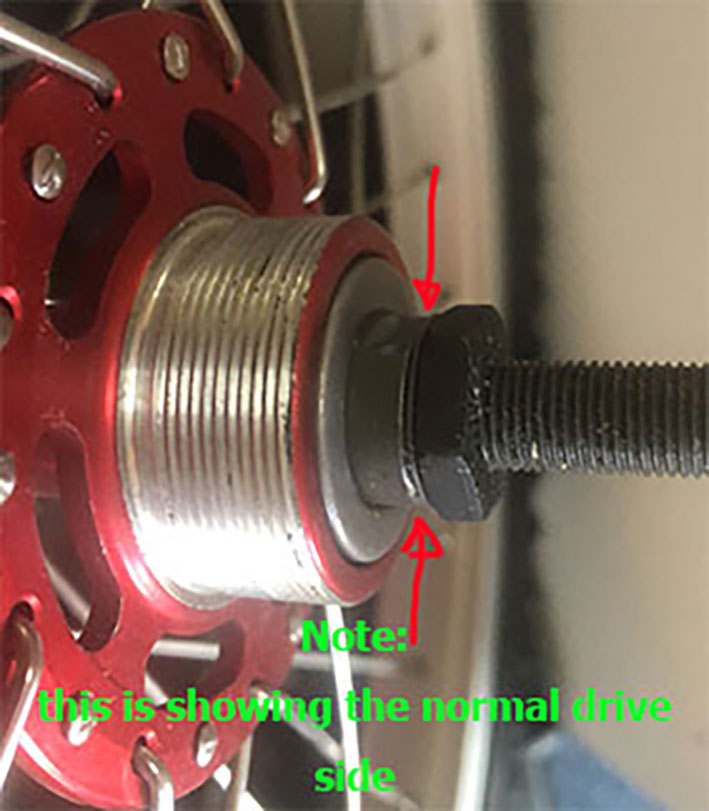

On the old non drive side,

Remove the spring washer between the cone nut and locking nut.

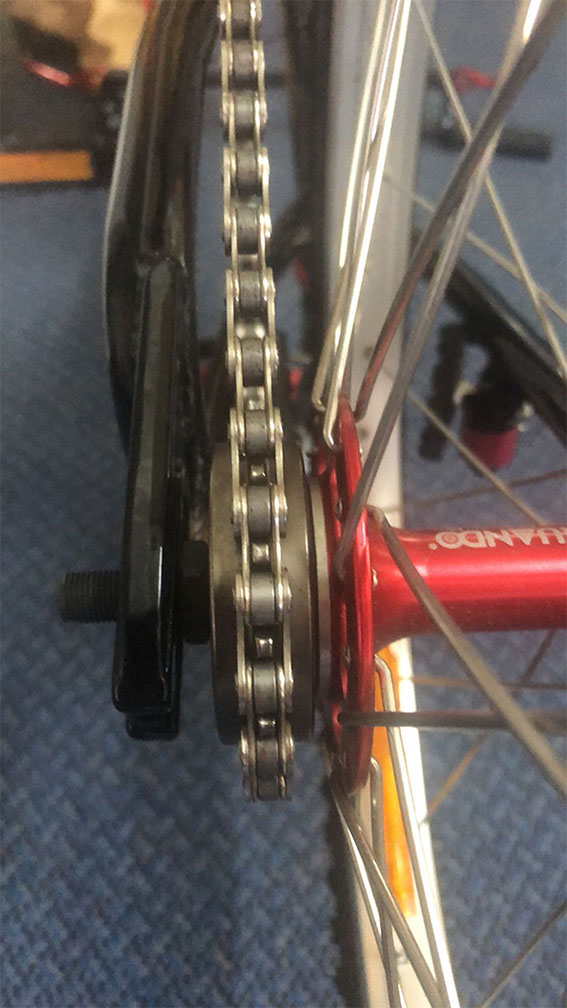

Fit the Sprocket to this side of the wheel.

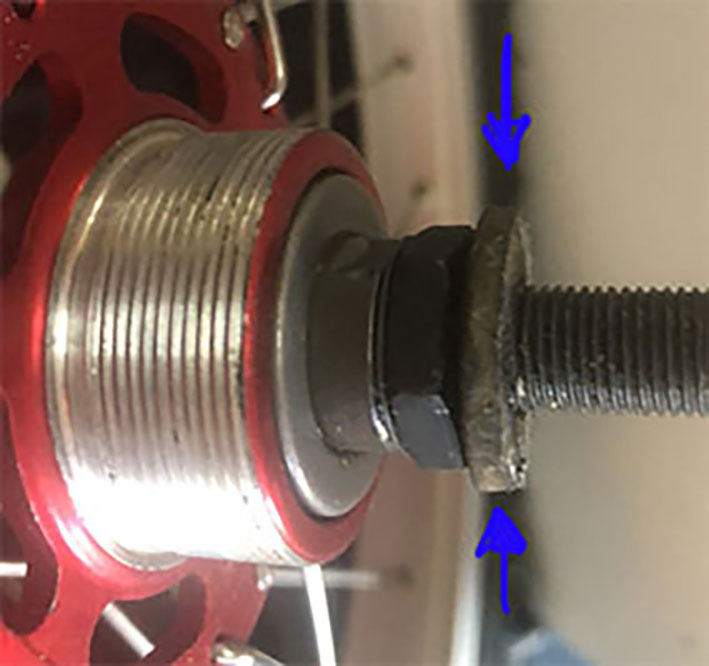

On the new non drive side.

Add a 3 or 4mm thick washer.

Note: The 4mm will make the wheel tight to slide the wheel back on

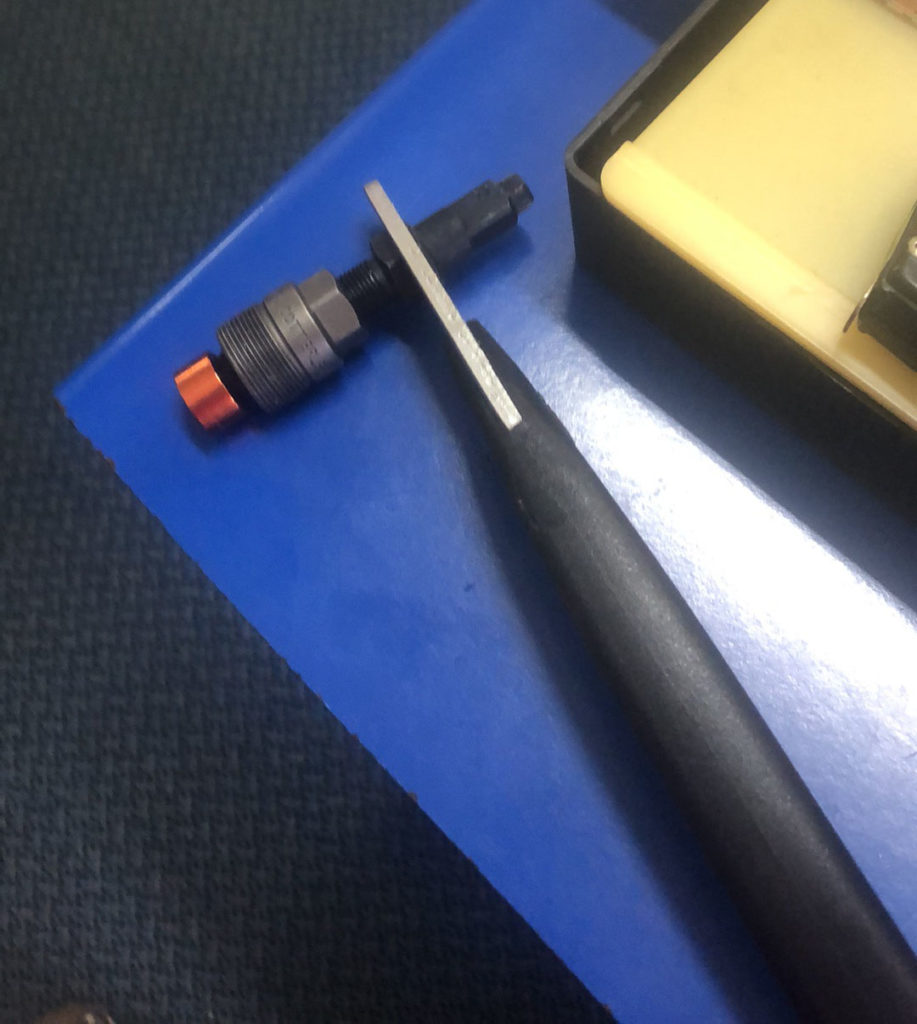

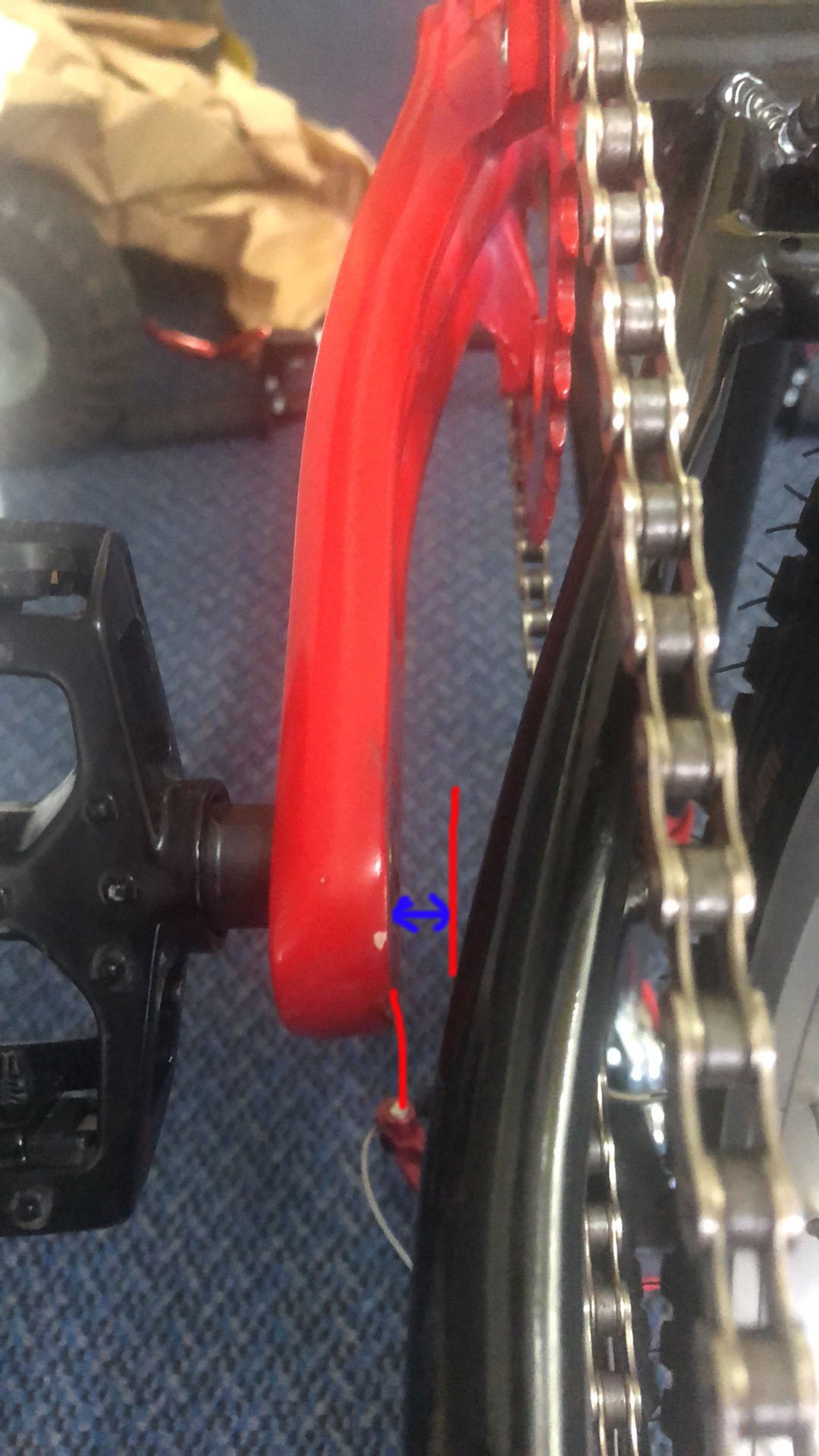

Check crank alignment to frame rear,

Tighten if required.

I did 1.5 turns on the bolt here
